What Is AMD 3D V-Cache? Ryzen 9 7950X3D Explained (2025)

If two CPUs have the same core count and similar clocks, why does one feel snappier? A huge part of that “feel” is cache, the ultra-fast memory sitting right on the CPU. AMD’s 3D V-Cache stacks extra L3 cache vertically on the chip, so more hot data lives close to the cores. Fewer trips to slow system RAM means smoother game frame times and tighter server tail latency.

CPU Cache 101 (why it matters to felt speed)

Modern CPUs keep data in layers: L1 (tiny, lightning-fast), L2 (bigger, still fast), and L3 (large, shared per chiplet). Typical ballpark latencies look like this: L1 ~ a few cycles, L2 ~ tens of cycles, L3 ~ low hundreds, DRAM ~ thousands. When your working set fits inside L3, you avoid the big jump out to RAM. That’s the whole game.

What is 3D V-Cache actually?

Instead of making the die wider, AMD bonds an extra slab of L3 on top of a compute chiplet using through-silicon vias (that’s the “3D”). You keep core distances short, add a lot of L3, and feed those cores with fewer waits. The first big proof was Ryzen 7 5800X3D (96 MB L3 on one chiplet). With Zen 4, AMD brought the same idea to higher-end parts, including the Ryzen 9 7950X3D.

Meet Ryzen 9 7950X3D (why it feels fast)

The 7950X3D is a 16-core/32-thread Zen 4 CPU with 128 MB of total L3. It has two core-complex dies (CCDs):

CCD A: has the extra stacked cache (96 MB L3 on that CCD), clocks slightly lower.

CCD B: no stacked cache (32 MB L3), clocks higher.

Modern Windows/Linux schedulers steer cache-sensitive work to the V-Cache CCD and fling bursty or frequency-hungry tasks to the high-clock CCD. Net effect: fewer stalls from memory misses, better frame-time stability, and lower tail latency without giving up top-end clocks entirely.

7950X CPU Testing: Sysbench Setup, Performance Results & Analysis on Linux

A concrete example you can picture:

Let’s say your read-heavy API and its hot MySQL index total ~80 MB when “warm”.

On a 7950X (no 3D V-Cache): each CCD has 32 MB of L3. Even if your process mostly sticks to one CCD, the hot set spills past 32 MB. You’ll hit L3 sometimes, but you’ll also bounce to DRAM a lot, especially under burst.
On a 7950X3D: run the service on the V-Cache CCD (96 MB L3) and your 80 MB hot set largely fits. Many lookups never leave L3, so latency spikes shrink and the P95/P99 of your endpoints gets nicer without any code changes.

FAQs - Frequently Asked Questions:

Is 3D V-Cache only for gaming?

No. Games made it famous, but the same tech helps any workload that repeatedly touches the same data—databases, trading, analytics, even some compilers.

Will 3D V-Cache speed up everything I do?

Not everything. If your tasks stream huge datasets once or scale perfectly across many cores, raw clocks and core count may matter more. But for latency-sensitive work, the 7950X3D often feels faster than its MHz suggests.

Do I need to tune anything?

Usually not, beyond keeping BIOS/chipset up to date. If you do manual CPU pinning, place cache-sensitive processes on the V-Cache CCD.

Final Thoughts

3D V-Cache isn’t a marketing trick; it’s a practical way to keep hot data close. If your stack cares about consistency and quick responses, Ryzen 9 7950X3D is an easy recommendation, especially when you can spin it up in the EU for €179/mo and call it a day.

Real-world focus: three workloads that love 3D V-Cache

Databases & read-heavy APIs

Hot B-tree indexes, session stores, and frequently joined tables often live in tens of megabytes. When those fit in L3, you cut misses dramatically. The payoff shows up in lower P95/P99 latency during traffic bursts—less queueing, fewer hiccups.

Game servers (Minecraft, Valheim, Rust, modded engines)

These loops hammer the same structures over and over. Larger L3 improves tick-rate stability and reduces micro-stutter when players crowd into the same area or your plugin stack gets busy.

Trading stacks & real-time analytics

Order books, rolling windows, and small models are classic “hot sets.” Keeping them in L3 narrows the gap between an event and your response, which is often more valuable than another 100 MHz of boost.

Quick setup & tuning notes (keep it practical)

Keep BIOS and chipset drivers current; you’ll get the best scheduling hints and power behavior.
If you pin processes, park cache-sensitive services on the V-Cache CCD and push background tasks to the other.
For durability without drama, Ubuntu 24.04 + mdadm RAID1 is a solid baseline: OS on one NVMe, data on another, so I/O noise doesn’t trip your latency.

Ready to Rent in the EU: Lithuania, Netherlands, United Kingdom

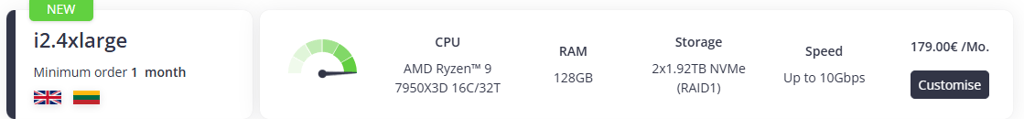

Prefer to skip the build and go straight to results? You can rent the AMD Ryzen™ 9 7950X3D for €179/mo in Lithuania, the Netherlands, and the UK. It’s a sweet spot for cache-sensitive servers—databases, game worlds, trading bots, low-latency APIs.
